SCS AWS Kinesis (LocalStack)

(Spring Cloud Stream AWS Kinesis)​

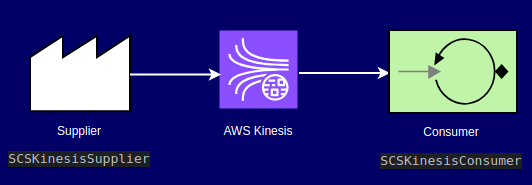

Description​

AWS Kinesis
Spring Cloud
Spring Cloud Stream
LocalStack

Project SCSKinesisExample-1:

localstack-compose.yaml
SCSKinesisConsumer
SCSKinesisSupplier

Requirements​

  • JDK 17

Start LocalStack​

Create:​

localstack-compose.yaml
version: "3.8"

services:
  localstack:
    container_name: "${LOCALSTACK_DOCKER_NAME-localstack_main}"
    image: localstack/localstack
    ports:
      - "127.0.0.1:4566:4566"            # LocalStack Gateway
      - "127.0.0.1:4510-4559:4510-4559"  # external services port range
    environment:
      - DEBUG=${DEBUG-}
      - DOCKER_HOST=unix:///var/run/docker.sock
      - AWS_ACCESS_KEY_ID=*******
      - AWS_SECRET_ACCESS_KEY=*******
      - DEFAULT_REGION=us-east-1
      - AWS_CBOR_DISABLE=true
    volumes:
      - "${LOCALSTACK_VOLUME_DIR:-./volume}:/var/lib/localstack"
      - "/var/run/docker.sock:/var/run/docker.sock"

Run:​

docker compose -f localstack-compose.yaml up

SCSKinesisConsumer​

.
├── Consumer.log
├── pom.xml
├── src
│   ├── main
│   │   ├── java
│   │   │   └── com
│   │   │       └── jreact
│   │   │           └── scs
│   │   │               └── kinesis
│   │   │                   ├── controller
│   │   │                   │   └── KinesisController.java
│   │   │                   ├── model
│   │   │                   │   └── IntegerEntity.java
│   │   │                   └── ScsKinesisConsumerApplication.java
│   │   └── resources
│   │       ├── application-local.properties
│   │       ├── application.properties
│   │       └── logback.xml
│   └── test
└── volume // Docker dir

Run Consumer​

mvn clean install
java -Dspring.profiles.active=local -jar target/SCSKinesisConsumer-0.0.1-SNAPSHOT.jar

SCSKinesisSupplier​

.
├── pom.xml
├── src
│   ├── main
│   │   ├── java
│   │   │   └── com
│   │   │       └── jreact
│   │   │           └── scs
│   │   │               └── supplier
│   │   │                   ├── config
│   │   │                   │   └── LocalStackClientConfiguration.java
│   │   │                   ├── controller
│   │   │                   │   └── KinesisController.java
│   │   │                   ├── model
│   │   │                   │   └── IntegerEntity.java
│   │   │                   └── ScsKinesisSupplierApplication.java
│   │   └── resources
│   │       ├── application-local.properties
│   │       ├── application.properties
│   │       └── logback.xml
├── Supplier.log
└── volume // Docker dir

Run Supplier​

mvn clean install
java -Dspring.profiles.active=local -jar target/SCSKinesisSupplier-0.0.1-SNAPSHOT.jar

Source Code​

https://github.com/ZbCiok/zjc-examples/tree/main/aws/aws/SCSKinesisExample-1
