Kafka Streams Getting Started

Description

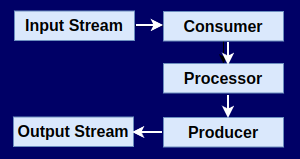

Input Stream - an input kafka topic in which you will get video titles with number of views per video
Consumer / Processor - a kafka streams application which reads the video views data and counts the number of views each video is getting
Processor / Consumer - Kafka streams will write the total video view data into an output topic
The output topic at any point will have the total number of views each of our videos have got.

Prerequisites

Maven
JDK 1.8+
Docker / Docker Desktop
Docker apache/kafka:3.9.0

Create the input and output topic

Setup Docker apache/kafka

docker pull apache/kafka:3.9.0

docker run -p 9092:9092 apache/kafka:3.9.0

docker ps

CONTAINER ID   IMAGE                COMMAND                  CREATED        STATUS          PORTS                    NAMES
8fd96b3b82b5   apache/kafka:3.9.0   "/__cacert_entrypoin…"   44 hours ago   Up 29 seconds   0.0.0.0:9092->9092/tcp   nifty_curie

Container name (above): nifty_curie

docker exec -it nifty_curie /bin/bash

cd /opt/kafka

Create topics

input-topic


bin/kafka-topics.sh --create --topic input-topic --partitions 1 --replication-factor 1 --bootstrap-server localhost:9092

output topic


bin/kafka-topics.sh --create --topic output-topic --partitions 1 --replication-factor 1 --bootstrap-server localhost:9092

Project Structure

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>kafka-streams-demo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <!-- https://mvnrepository.com/artifact/org.apache.kafka/kafka-streams -->
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-streams</artifactId>
            <version>2.8.0</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-log4j12 -->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.30</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.6.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-assembly-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                        <configuration>
                            <archive>
                                <manifest>
                                    <mainClass>KafkaStreamsDemo</mainClass>
                                </manifest>
                            </archive>
                            <descriptorRefs>
                                <descriptorRef>jar-with-dependencies</descriptorRef>
                            </descriptorRefs>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

KafkaStreamsDemo.java

import org.apache.kafka.common.serialization.Serde;
import org.apache.kafka.common.serialization.Serdes;
import org.apache.kafka.streams.KafkaStreams;
import org.apache.kafka.streams.StreamsBuilder;
import org.apache.kafka.streams.StreamsConfig;
import org.apache.kafka.streams.kstream.*;
import org.apache.log4j.BasicConfigurator;
import org.apache.log4j.Level;
import org.apache.log4j.Logger;
import java.util.Properties;
import java.util.concurrent.CountDownLatch;

public class KafkaStreamsDemo {
    public static void main(String[] args) {
        // initialise a default logging mechanism
        BasicConfigurator.configure();
        Logger.getRootLogger().setLevel(Level.INFO);

        // setup String, Long Serdes to help with serialising and deserialsing the kafka data
        final Serde<String> stringSerde = Serdes.String();
        final Serde<Long> longSerde = Serdes.Long();

        // build the kafka streams topology
        final StreamsBuilder builder = new StreamsBuilder();
        KStream<String, String> views = builder.stream(
                "input-topic",
                Consumed.with(stringSerde, stringSerde)
        );
        KTable<String, Long> totalViews = views
                .mapValues(v -> Long.parseLong(v))
                .groupByKey(Grouped.with(stringSerde, longSerde))
                .reduce(Long::sum);
        totalViews.toStream().to("output-topic", Produced.with(stringSerde, longSerde));

        // create a KafkaStreams object
        final Properties props = new Properties();
        props.putIfAbsent(StreamsConfig.APPLICATION_ID_CONFIG, "streams-totalviews");
        props.putIfAbsent(StreamsConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        final KafkaStreams streams = new KafkaStreams(builder.build(), props);

        // starts the kafka streams application
        final CountDownLatch latch = new CountDownLatch(1);
        try {
            streams.start();
            latch.await();
        } catch (final Throwable e) {
            System.exit(1);
        }
        Runtime.getRuntime().addShutdownHook(new Thread("streams-totalviews") {
            @Override
            public void run() {
                streams.close();
                latch.countDown();
            }
        });
        System.exit(0);
    }
}

Running the example

mvn clean package

java -jar target/kafka-streams-demo-1.0-SNAPSHOT-jar-with-dependencies.jar

In a second terminal, start a kafka producer using the following command:

bin/kafka-console-producer.sh --bootstrap-server localhost:9092 \
    --topic input-topic \
    --property key.separator=":" \
    --property parse.key=true

In a third terminal, start a kafka consumer using the following command:

bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 \
    --topic output-topic \
    --property print.key=true \
    --property key.separator="-" \
    --property key.deserializer=org.apache.kafka.common.serialization.StringDeserializer \
    --property value.deserializer=org.apache.kafka.common.serialization.LongDeserializer

In the Producer terminal send the following:

Video1:5
Video2:10
Video1:4
Video1:0
Video2:7
Video3:12
Video1:7

In the Consumer terminal you will get the following output:

Video2-17
Video3-12
Video1-16

Based on: https://adityasridhar.com/posts/how-to-get-started-with-kafka-streams_
