Fanout Exchange in AMQP

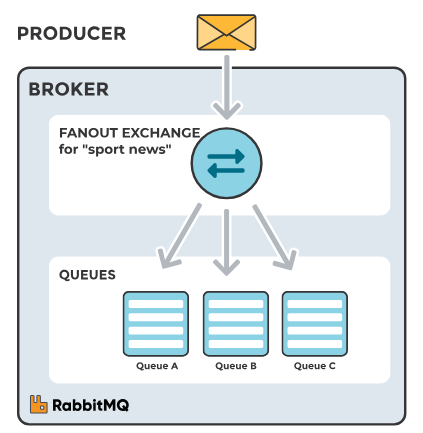

Description

• One or more Queues bind to the Fanout exchange with no routing keys.
• A publisher sends the Exchange a message.
• The Exchange then forwards the message to the Queues unconditionally.

Requirements

• JDK 17+
• RabbitMQ on Docker

Install RabbitMQ on Docker

docker-compose.yml:

version: "3.6"
# https://docs.docker.com/compose/compose-file/

services:
  rabbitmq:
    image: 'rabbitmq:3.6-management-alpine'
    ports:
      # The standard AMQP protocol port
      - '5672:5672'
      # HTTP management UI
      - '15672:15672'
    environment:
      # The location of the RabbitMQ server.  "amqp" is the protocol;
      # "rabbitmq" is the hostname.  Note that there is not a guarantee
      # that the server will start first!  Telling the pika client library
      # to try multiple times gets around this ordering issue.
      AMQP_URL: 'amqp://rabbitmq?connection_attempts=5&retry_delay=5'
      RABBITMQ_DEFAULT_USER: "guest"
      RABBITMQ_DEFAULT_PASS: "guest"
    networks:
      - network
#    volumes:
#      - ./.docker/rabbitmq/etc/:/etc/rabbitmq/
#      - ./.docker/rabbitmq/data/:/var/lib/rabbitmq/
#      - ./.docker/rabbitmq/logs/:/var/log/rabbitmq/

networks:
  # Declare our private network.  We must declare one for the magic
  # Docker DNS to work, but otherwise its default settings are fine.
  network: {}

http://localhost:15672/

Project Structure

.
├── pom.xml
├── rabbitmq-docker
│   └── docker-compose.yml
├── readme.md
└── src
    └── main
        └── java
            └── com
                └── amqp
                    ├── basic
                    │   └── queue
                    │       └── CommonConfigs.java
                    └── exchanges
                        ├── ConnectionManager.java
                        └── FanoutExchange.java

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  <modelVersion>4.0.0</modelVersion>

  <groupId>rabbitmq-examples</groupId>
  <artifactId>rabbitmq-fanout-exchange</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <description>RabbitMQ code examples using the amqp-client</description>

  <properties>
    <maven.compiler.target>22</maven.compiler.target>
    <maven.compiler.source>22</maven.compiler.source>
    <java.version>22</java.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>com.rabbitmq</groupId>
      <artifactId>amqp-client</artifactId>
      <version>5.24.0</version>
    </dependency>
  </dependencies>

</project>

CommonConfigs.java

package com.amqp.basic.queue;

public class CommonConfigs {
  public static final String DEFAULT_QUEUE = "Queue-1";
  public static final String AMQP_URL = "amqp://guest:guest@localhost:5672/";
}

ConnectionManager.java

package com.amqp.exchanges;

import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

public class ConnectionManager {

  private static Connection connection = null;

  /**
   * Create RabbitMQ Connection
   *
   * @return Connection
   */
  public static Connection getConnection() {
    if (connection == null) {
      try {
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connection = connectionFactory.newConnection("amqp://guest:guest@localhost:5672/");
      } catch (IOException | TimeoutException e) {
        e.printStackTrace();
      }
    }
    return connection;
  }
}

FanoutExchange.java

package com.amqp.exchanges;

import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * Unconditional message broadcast.
 */
public class FanoutExchange {

  public static void declareExchange() throws IOException, TimeoutException {
    Channel channel = ConnectionManager.getConnection().createChannel();
    //Declare my-fanout-exchange
    channel.exchangeDeclare("my-fanout-exchange", BuiltinExchangeType.FANOUT, true);
    channel.close();
  }

  public static void declareQueues() throws IOException, TimeoutException {
    //Create a channel - do not share the Channel instance
    Channel channel = ConnectionManager.getConnection().createChannel();

    //Create the Queues
    channel.queueDeclare("MobileQ", true, false, false, null);
    channel.queueDeclare("ACQ", true, false, false, null);
    channel.queueDeclare("LightQ", true, false, false, null);

    channel.close();
  }

  public static void declareBindings() throws IOException, TimeoutException {
    Channel channel = ConnectionManager.getConnection().createChannel();
    //Create bindings - (queue, exchange, routingKey) - routingKey != null
    channel.queueBind("MobileQ", "my-fanout-exchange", "");
    channel.queueBind("ACQ", "my-fanout-exchange", "");
    channel.queueBind("LightQ", "my-fanout-exchange", "");
    channel.close();
  }

  public static void subscribeMessage() throws IOException, TimeoutException {
    Channel channel = ConnectionManager.getConnection().createChannel();
    channel.basicConsume("LightQ", true, ((consumerTag, message) -> {
      System.out.println(consumerTag);
      System.out.println("LightQ: " + new String(message.getBody()));
    }), consumerTag -> {
      System.out.println(consumerTag);
    });

    channel.basicConsume("ACQ", true, ((consumerTag, message) -> {
      System.out.println(consumerTag);
      System.out.println("ACQ: " + new String(message.getBody()));
    }), consumerTag -> {
      System.out.println(consumerTag);
    });

    channel.basicConsume("MobileQ", true, ((consumerTag, message) -> {
      System.out.println(consumerTag);
      System.out.println("MobileQ: " + new String(message.getBody()));
    }), consumerTag -> {
      System.out.println(consumerTag);
    });
  }

  public static void publishMessage() throws IOException, TimeoutException {
    Channel channel = ConnectionManager.getConnection().createChannel();
    String message = "Main Power is ON";
    channel.basicPublish("my-fanout-exchange", "", null, message.getBytes());
    channel.close();
  }

  public static void main(String[] args) throws IOException, TimeoutException {
    FanoutExchange.declareQueues();
    FanoutExchange.declareExchange();
    FanoutExchange.declareBindings();

    //Threads created to publish-subscribe asynchronously
    Thread subscribe = new Thread() {
      @Override
      public void run() {
        try {
          FanoutExchange.subscribeMessage();
        } catch (IOException | TimeoutException e) {
          e.printStackTrace();
        }
      }
    };

    Thread publish = new Thread() {
      @Override
      public void run() {
        try {
          FanoutExchange.publishMessage();
        } catch (IOException | TimeoutException e) {
          e.printStackTrace();
        }
      }
    };

    subscribe.start();
    publish.start();
  }
}

Run

public static void main(String[] args) throws IOException, TimeoutException { ...

Output

amq.ctag-m8cjdQniE8tXYQjHw44f7Q
LightQ: Main Power is ON
amq.ctag-1rsJPVZkXgwMBvTBEJQJ6w
ACQ: Main Power is ON
amq.ctag-6X_dOQzw7rjiPOUQDK1bfg
MobileQ: Main Power is ON

---

Source Code:
https://github.com/ZbCiok/zjc-examples/tree/main/reactive-messaging/rabbitmq/rabbitmq-fanout-exchange
