Headers Exchange in AMQP

Description

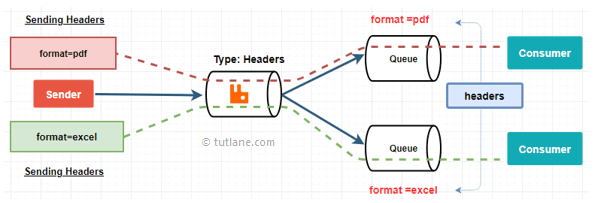

One or more Queues bind (linked) to a Headers Exchange using header properties( H ).
A Producer sends a message to this Exchange with a Header property (MH).
If MH matches with H, the message is forwarded to the Queue. The Headers matching algorithm is discussed next.
The consumers listening to the Queue receives the message and processes it.

Requirements

JDK 17+
RabbitMQ on Docker

Install RabbitMQ on Docker

docker-compose.yml:

version: "3.6"
# https://docs.docker.com/compose/compose-file/

services:
  rabbitmq:
    image: 'rabbitmq:3.6-management-alpine'
    ports:
      # The standard AMQP protocol port
      - '5672:5672'
      # HTTP management UI
      - '15672:15672'
    environment:
      # The location of the RabbitMQ server.  "amqp" is the protocol;
      # "rabbitmq" is the hostname.  Note that there is not a guarantee
      # that the server will start first!  Telling the pika client library
      # to try multiple times gets around this ordering issue.
      AMQP_URL: 'amqp://rabbitmq?connection_attempts=5&retry_delay=5'
      RABBITMQ_DEFAULT_USER: "guest"
      RABBITMQ_DEFAULT_PASS: "guest"
    networks:
      - network
#    volumes:
#      - ./.docker/rabbitmq/etc/:/etc/rabbitmq/
#      - ./.docker/rabbitmq/data/:/var/lib/rabbitmq/
#      - ./.docker/rabbitmq/logs/:/var/log/rabbitmq/

networks:
  # Declare our private network.  We must declare one for the magic
  # Docker DNS to work, but otherwise its default settings are fine.
  network: {}

http://localhost:15672/

Project Structure

.
├── pom.xml
├── rabbitmq-docker
│   └── docker-compose.yml
├── readme.md
└── src
    └── main
        └── java
            └── com
                └── amqp
                    ├── basic
                    │   └── queue
                    │       └── CommonConfigs.java
                    └── exchanges
                        ├── ConnectionManager.java
                        └── HeadersExchange.java

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

  <modelVersion>4.0.0</modelVersion>

  <groupId>rabbitmq-examples</groupId>
  <artifactId>rabbitmq-headers-exchange</artifactId>
  <version>0.0.1-SNAPSHOT</version>
  <description>RabbitMQ code examples using the amqp-client</description>

  <properties>
    <maven.compiler.target>22</maven.compiler.target>
    <maven.compiler.source>22</maven.compiler.source>
    <java.version>22</java.version>
  </properties>

  <dependencies>
    <dependency>
      <groupId>com.rabbitmq</groupId>
      <artifactId>amqp-client</artifactId>
      <version>5.24.0</version>
    </dependency>
  </dependencies>

</project>

CommonConfigs.java

package com.amqp.basic.queue;

public class CommonConfigs {
  public static final String DEFAULT_QUEUE = "Queue-1";
  public static final String AMQP_URL = "amqp://guest:guest@localhost:5672/";
}

ConnectionManager.java

package com.amqp.exchanges;

import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

public class ConnectionManager {

  private static Connection connection = null;

  /**
   * Create RabbitMQ Connection
   *
   * @return Connection
   */
  public static Connection getConnection() {
    if (connection == null) {
      try {
        ConnectionFactory connectionFactory = new ConnectionFactory();
        connection = connectionFactory.newConnection("amqp://guest:guest@localhost:5672/");
      } catch (IOException | TimeoutException e) {
        e.printStackTrace();
      }
    }
    return connection;
  }
}

HeadersExchange.java

package com.amqp.exchanges;

import com.rabbitmq.client.AMQP.BasicProperties;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeoutException;

public class HeadersExchange {

  /**
   * Declare a Headers Exchange.
   *
   * @throws IOException
   * @throws TimeoutException
   */
  public static void declareExchange() throws IOException, TimeoutException {
    Channel channel = ConnectionManager.getConnection().createChannel();
    //Declare my-header-exchange
    channel.exchangeDeclare("my-header-exchange", BuiltinExchangeType.HEADERS, true);
    channel.close();
  }

  /**
   * Declare 3 Queues to demonstrate the example.
   *
   * @throws TimeoutException
   */
  public static void declareQueues() throws IOException, TimeoutException {
    //Create a channel - do not share the Channel instance
    Channel channel = ConnectionManager.getConnection().createChannel();

    //Create the Queues
    channel.queueDeclare("HealthQ", true, false, false, null);
    channel.queueDeclare("SportsQ", true, false, false, null);
    channel.queueDeclare("EducationQ", true, false, false, null);

    channel.close();
  }

  /**
   * Set the Bindings between Exchange and Queues.
   *
   * @throws IOException
   * @throws TimeoutException
   */
  public static void declareBindings() throws IOException, TimeoutException {
    Channel channel = ConnectionManager.getConnection().createChannel();
    //Create bindings - (queue, exchange, routingKey, headers) - routingKey != null
    Map<String, Object> healthArgs = new HashMap<>();
    healthArgs.put("x-match", "any"); //Match any of the header
    healthArgs.put("h1", "Header1");
    healthArgs.put("h2", "Header2");
    channel.queueBind("HealthQ", "my-header-exchange", "", healthArgs);

    Map<String, Object> sportsArgs = new HashMap<>();
    sportsArgs.put("x-match", "all"); //Match all of the header
    sportsArgs.put("h1", "Header1");
    sportsArgs.put("h2", "Header2");
    channel.queueBind("SportsQ", "my-header-exchange", "", sportsArgs);

    Map<String, Object> educationArgs = new HashMap<>();
    educationArgs.put("x-match", "any"); //Match any of the header
    educationArgs.put("h1", "Header1");
    educationArgs.put("h2", "Header2");
    channel.queueBind("EducationQ", "my-header-exchange", "", educationArgs);

    channel.close();
  }

  /**
   * Subscribe the Queues.
   *
   * @throws IOException
   * @throws TimeoutException
   */
  public static void subscribeMessage() throws IOException, TimeoutException {
    Channel channel = ConnectionManager.getConnection().createChannel();
    channel.basicConsume("HealthQ", true, ((consumerTag, message) -> {
      System.out.println("\n\n=========== Health Queue ==========");
      System.out.println(consumerTag);
      System.out.println("HealthQ: " + new String(message.getBody()));
      System.out.println(message.getEnvelope());
    }), consumerTag -> {
      System.out.println(consumerTag);
    });

    channel.basicConsume("SportsQ", true, ((consumerTag, message) -> {
      System.out.println("\n\n ============ Sports Queue ==========");
      System.out.println(consumerTag);
      System.out.println("SportsQ: " + new String(message.getBody()));
      System.out.println(message.getEnvelope());
    }), consumerTag -> {
      System.out.println(consumerTag);
    });

    channel.basicConsume("EducationQ", true, ((consumerTag, message) -> {
      System.out.println("\n\n ============ Education Queue ==========");
      System.out.println(consumerTag);
      System.out.println("EducationQ: " + new String(message.getBody()));
      System.out.println(message.getEnvelope());
    }), consumerTag -> {
      System.out.println(consumerTag);
    });
  }

  public static void publishMessage() throws IOException, TimeoutException {
    Channel channel = ConnectionManager.getConnection().createChannel();

    String message = "Header Exchange example 1";
    Map<String, Object> headerMap = new HashMap<>();
    headerMap.put("h1", "Header1");
    headerMap.put("h3", "Header3");
    BasicProperties properties = new BasicProperties()
        .builder().headers(headerMap).build();
    channel.basicPublish("my-header-exchange", "", properties, message.getBytes());

    message = "Header Exchange example 2";
    headerMap.put("h2", "Header2");
    properties = new BasicProperties()
        .builder().headers(headerMap).build();
    channel.basicPublish("my-header-exchange", "", properties, message.getBytes());
    channel.close();
  }

  public static void main(String[] args) throws IOException, TimeoutException {
    HeadersExchange.declareQueues();
    HeadersExchange.declareExchange();
    HeadersExchange.declareBindings();

    //Threads created to publish-subscribe asynchronously
    Thread subscribe = new Thread() {
      @Override
      public void run() {
        try {
          HeadersExchange.subscribeMessage();
        } catch (IOException | TimeoutException e) {
          e.printStackTrace();
        }
      }
    };

    Thread publish = new Thread() {
      @Override
      public void run() {
        try {
          HeadersExchange.publishMessage();
        } catch (IOException | TimeoutException e) {
          e.printStackTrace();
        }
      }
    };

    subscribe.start();
    publish.start();
  }
}

Run

public static void main(String[] args) throws IOException, TimeoutException { ...

Output

=========== Health Queue ==========
amq.ctag-OGzUfuJGaGMSSwlhBDrsKg
HealthQ: Header Exchange example 1
Envelope(deliveryTag=1, redeliver=false, exchange=my-header-exchange, routingKey=)


=========== Health Queue ==========
amq.ctag-OGzUfuJGaGMSSwlhBDrsKg
HealthQ: Header Exchange example 2
Envelope(deliveryTag=2, redeliver=false, exchange=my-header-exchange, routingKey=)


 ============ Sports Queue ==========
amq.ctag-nAg7T-JAqEgSPFihJNKQwQ
SportsQ: Header Exchange example 2
Envelope(deliveryTag=3, redeliver=false, exchange=my-header-exchange, routingKey=)


 ============ Education Queue ==========
amq.ctag-vovwDsMTh2_SGTM1ykY42A
EducationQ: Header Exchange example 1
Envelope(deliveryTag=4, redeliver=false, exchange=my-header-exchange, routingKey=)


 ============ Education Queue ==========
amq.ctag-vovwDsMTh2_SGTM1ykY42A
EducationQ: Header Exchange example 2
Envelope(deliveryTag=5, redeliver=false, exchange=my-header-exchange, routingKey=)

Source Code:
https://github.com/ZbCiok/zjc-examples/tree/main/reactive-messaging/rabbitmq/rabbitmq-headers-exchange
